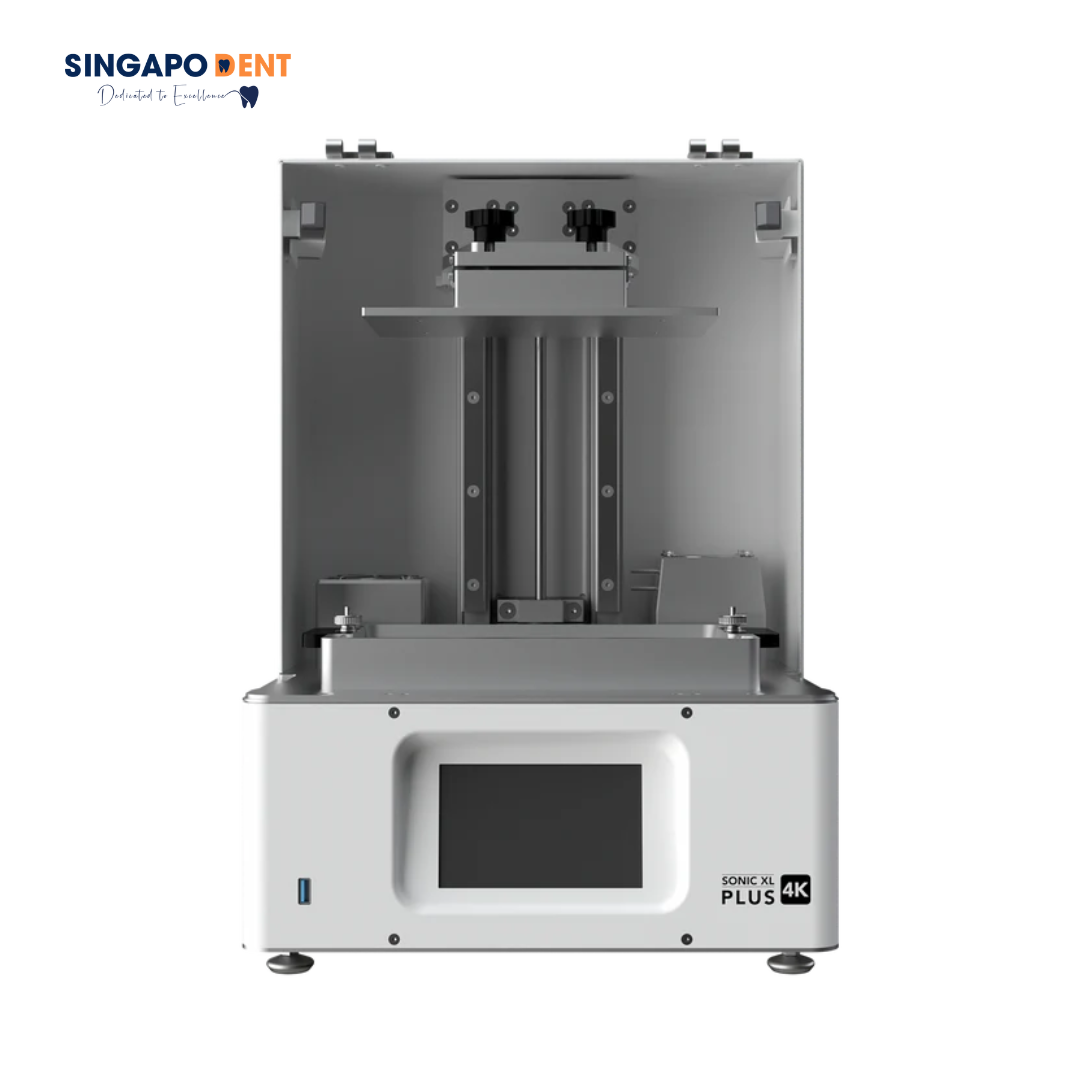

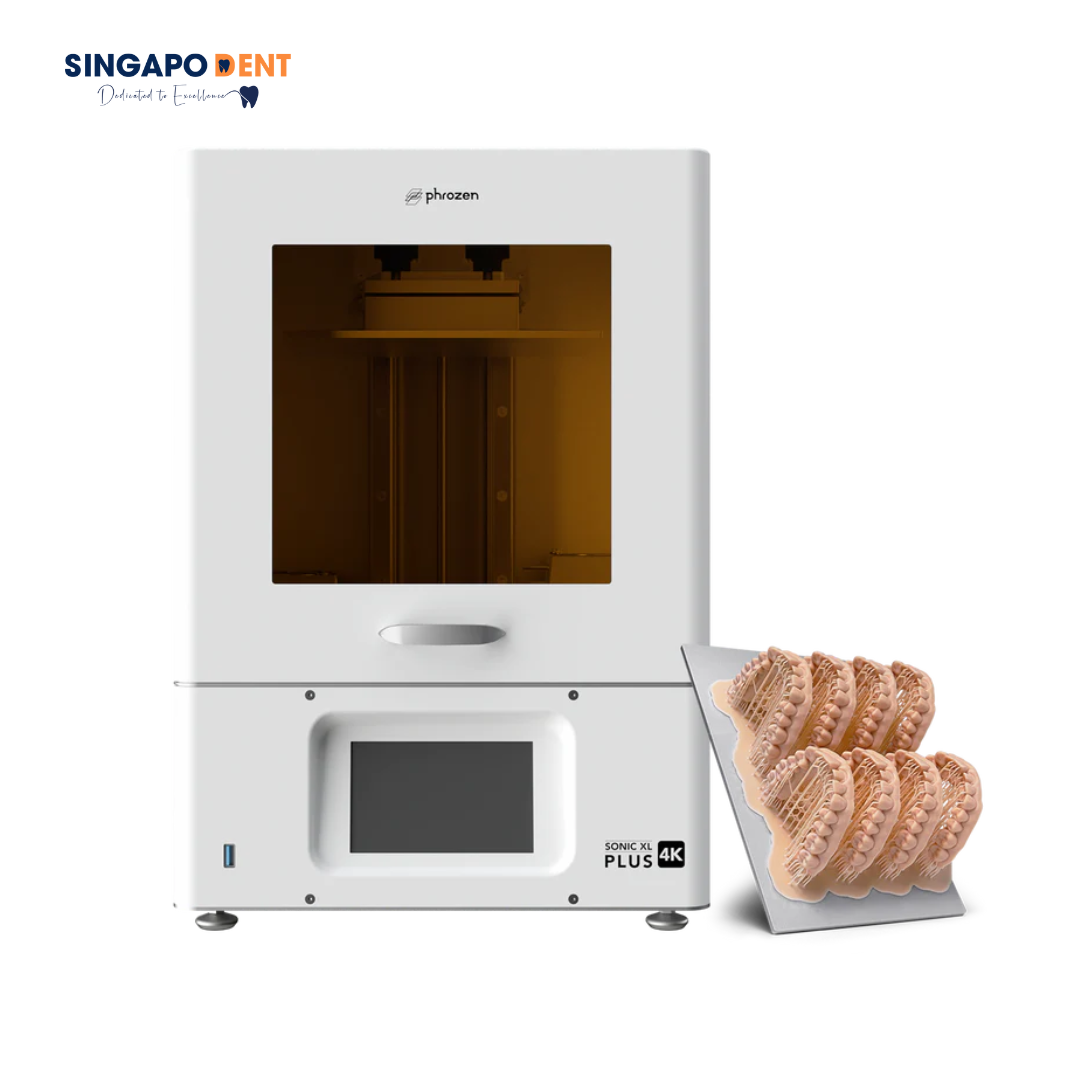

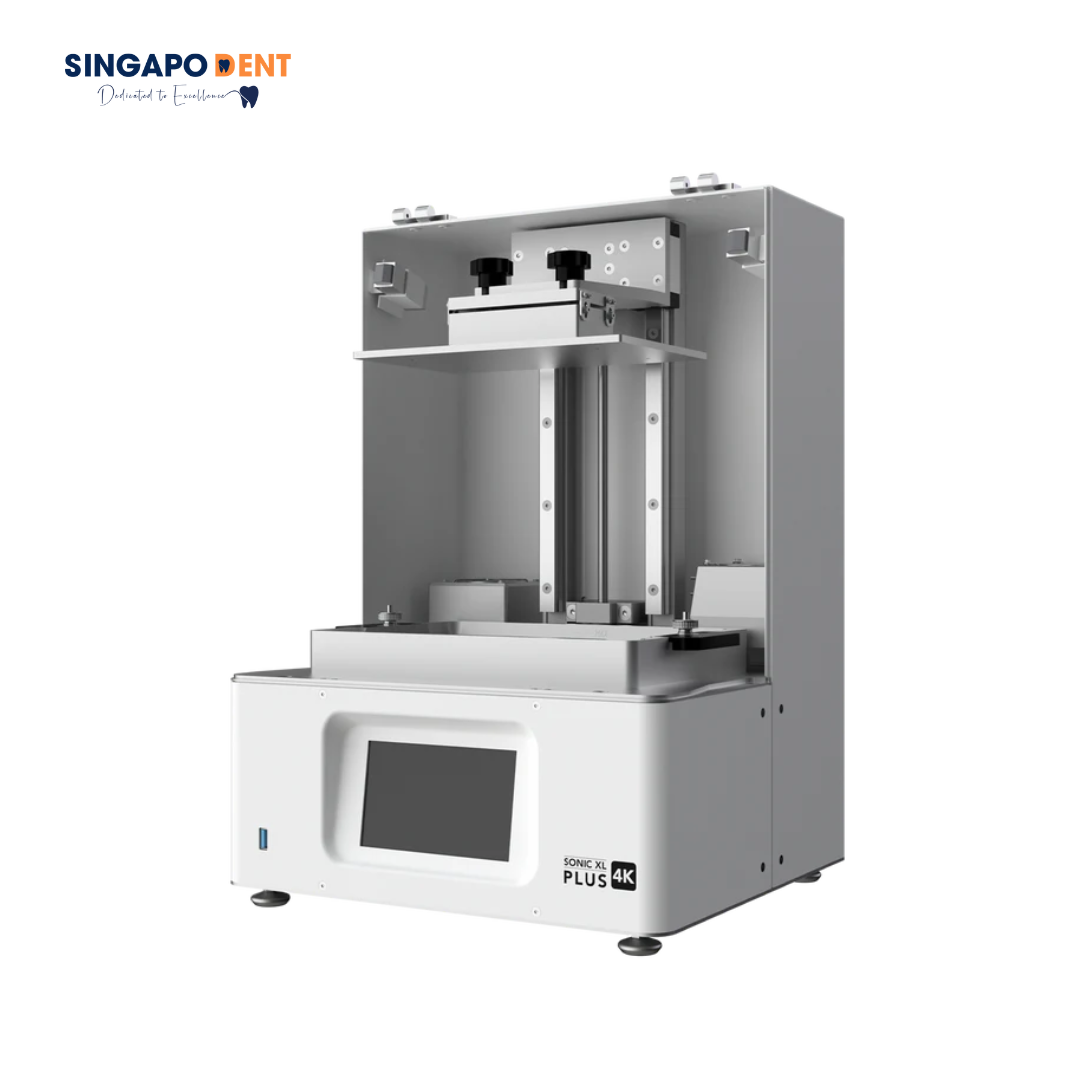

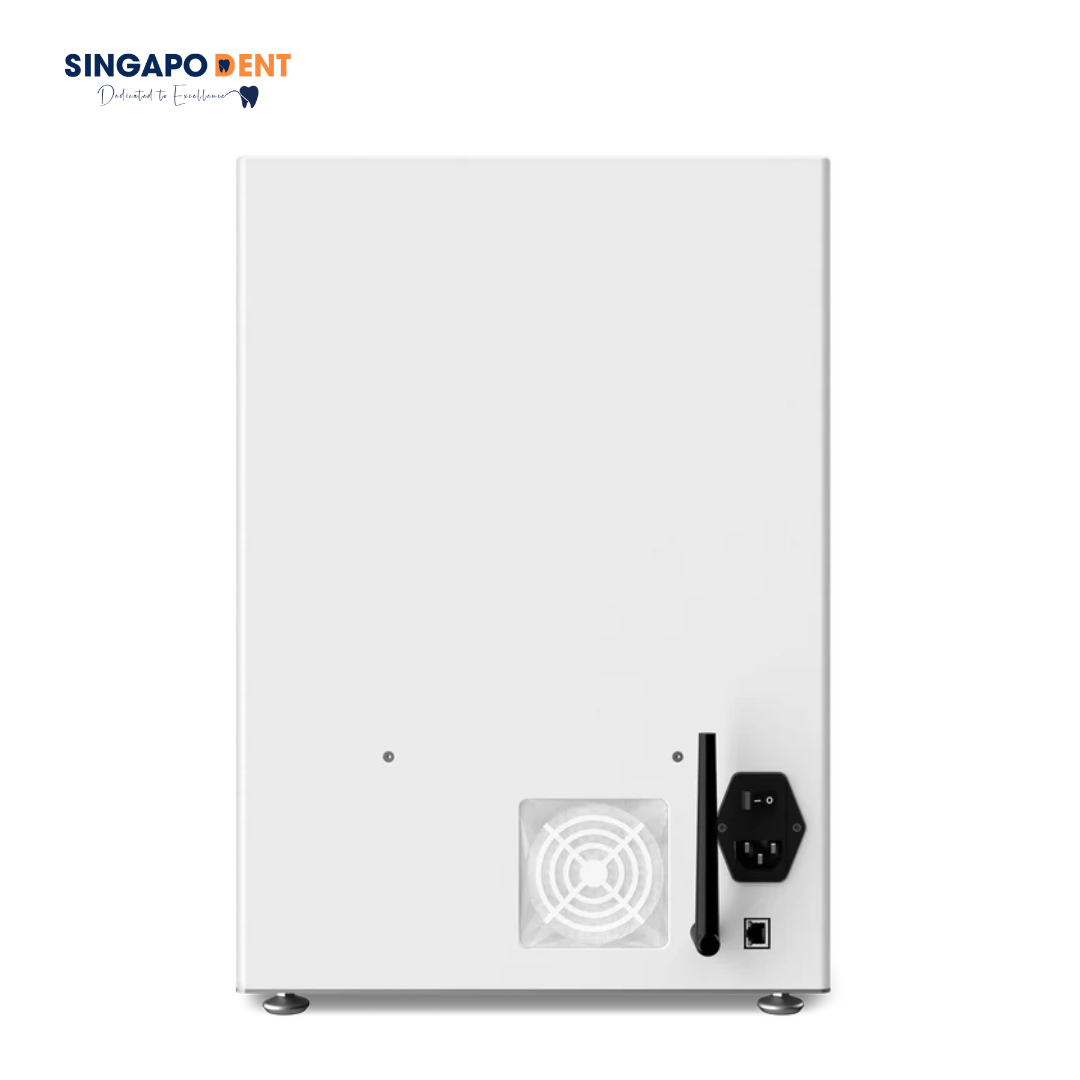

Phrozen Sonic XL 4K Plus 3D Printer

Product Name: Phrozen Sonic XL 4K Plus 3D Printer

Description:
The Phrozen Sonic XL 4K Plus features a redesigned mainboard and significantly improved build quality, providing powerful performance to meet the demands of high-precision, large-scale dental 3D printing.

Key Features & Benefits:

• Prints up to 8 full-arch dental models in ±35 minutes

• XY Resolution: 52 microns for highly detailed prints

• Enhanced mainboard & heating technology for consistent and reliable performance

• Integrated air filtration system for cleaner operation

Printing Technology: LCD
Specifications:

• Monochrome LCD: 9.3-inch 4K

• Light Source: ParaLED® 3.0 module, 405nm

• Z-axis: Dual linear rails with ball screw

• Printer Dimensions: 33 × 29 × 47 cm

• Weight: 17.2 kg

• Build Volume: 19.66 × 12.03 × 20 cm

• XY Resolution: 52 µm

• Layer Thickness: 0.01–0.30 mm

• Maximum Printing Speed: Up to 90 mm/hour

System & Operation:

• OS: Phrozen OS

• Control Panel: 5-inch touch screen

• Slicing Software: Phrozen DS Slicer

• Connectivity: USB | Ethernet | Wi-Fi

• Compatible File Format: .PRZ

• Power Requirements: AC100-240V, 50-60Hz, 180W

• Cooling System: Single cooling fan

• Additional Features: Integrated air filter | Heating system
