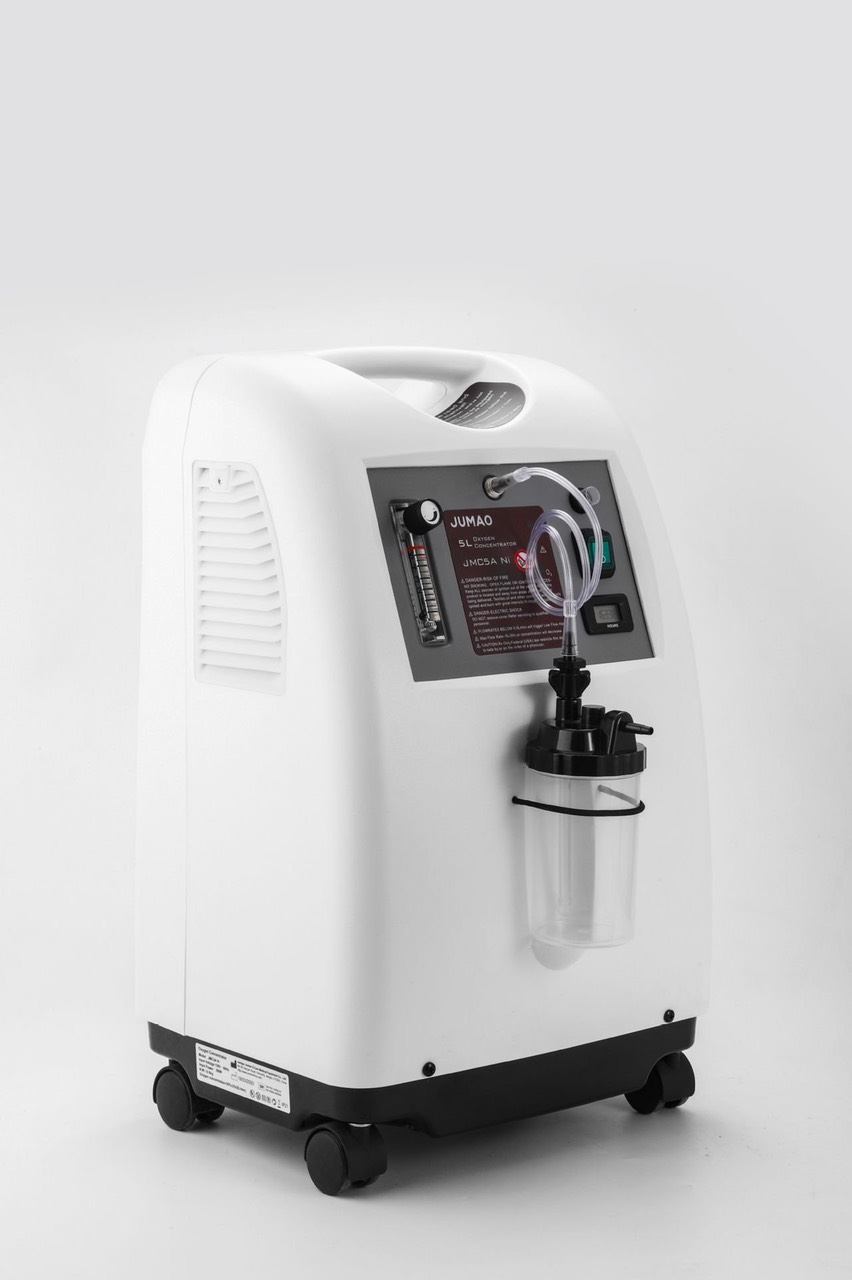

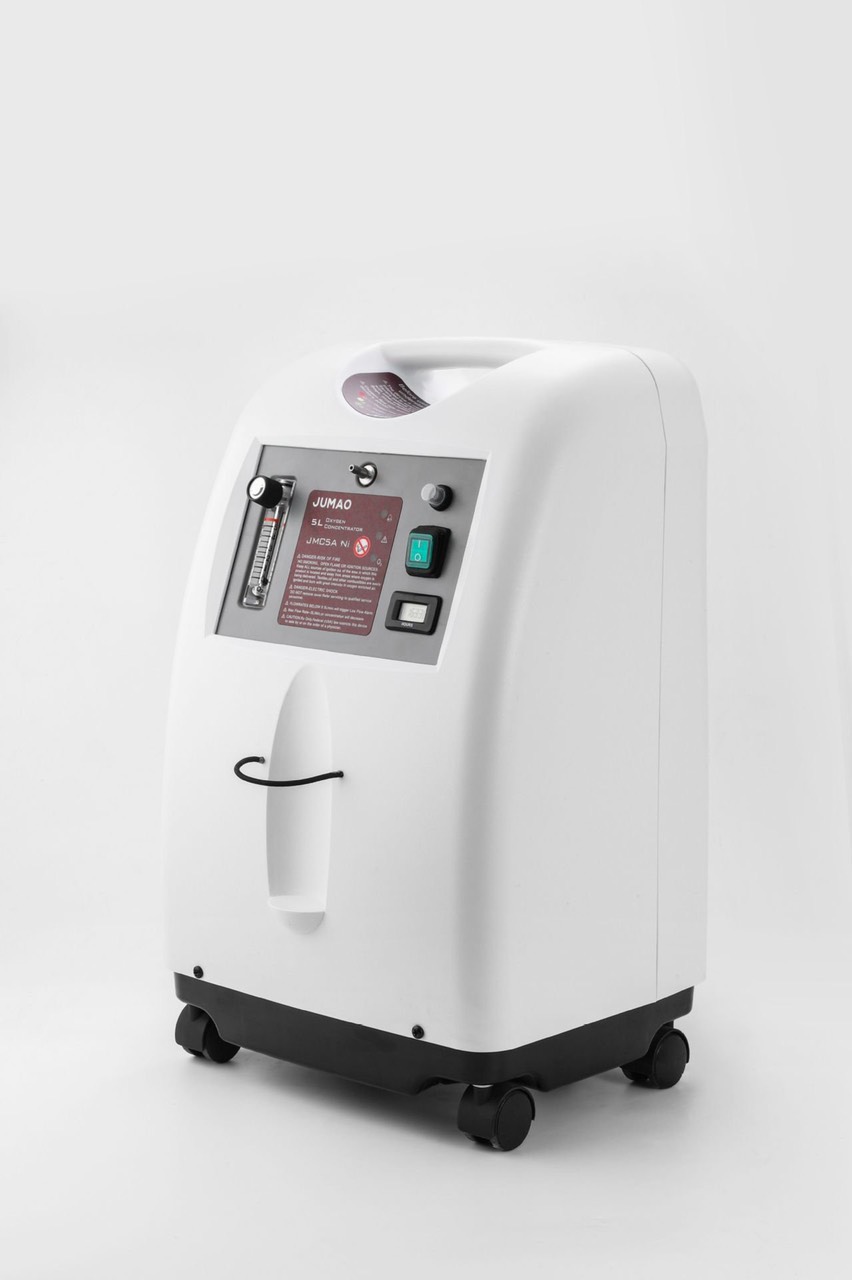

Medical Oxygen Concentrator JUMAO JMC5A (5L)

Product Name: JUMAO JMC5A Type: Medical-grade Oxygen Concentrator – 5 Liter Certification: FDA 510(k) cleared (USA)

DESCRIPTION The JUMAO JMC5A is a high-performance 5-liter medical oxygen concentrator that delivers stable oxygen concentration of 93% ± 3% across the full flow range of 0.5–5 L/min. Equipped with a genuine Thomas (USA) compressor and designed for continuous 24/7 operation, it is ideal for hospitals, clinics, and home oxygen therapy. It also includes a nebulizer function for aerosol therapy. Widely used for patients with respiratory conditions (pneumonia, COPD, asthma, chronic respiratory failure), elderly individuals, post-COVID recovery, cardiovascular diseases, stress-related fatigue, pregnancy support, and beauty oxygen therapy.

TARGET USERS

• Patients requiring supplemental oxygen therapy (COPD, asthma, pneumonia, respiratory failure)
• COVID-19 patients (especially those with comorbidities: hypertension, diabetes, heart disease, hyperlipidemia)
• Elderly, weak, or fatigued individuals
• Pregnant women, people under high stress, weather-related breathing difficulty
• Home and clinical settings for general health improvement, brain function support, memory enhancement, and skin oxygen therapy

KEY TECHNICAL SPECIFICATIONS

• Flow rate: 0.5–5 L/min (suitable for 1–2 users simultaneously)
• Oxygen concentration: 93% ± 3% (compared to 21% in ambient air)
• Compressor: Genuine Thomas (USA) – ultra-quiet, lifespan ≥ 10,000 hours
• Continuous 24/7 operation
• Built-in nebulizer function
• Power supply: 230V / 50Hz, 390VA
• Noise level: < 46 dBA

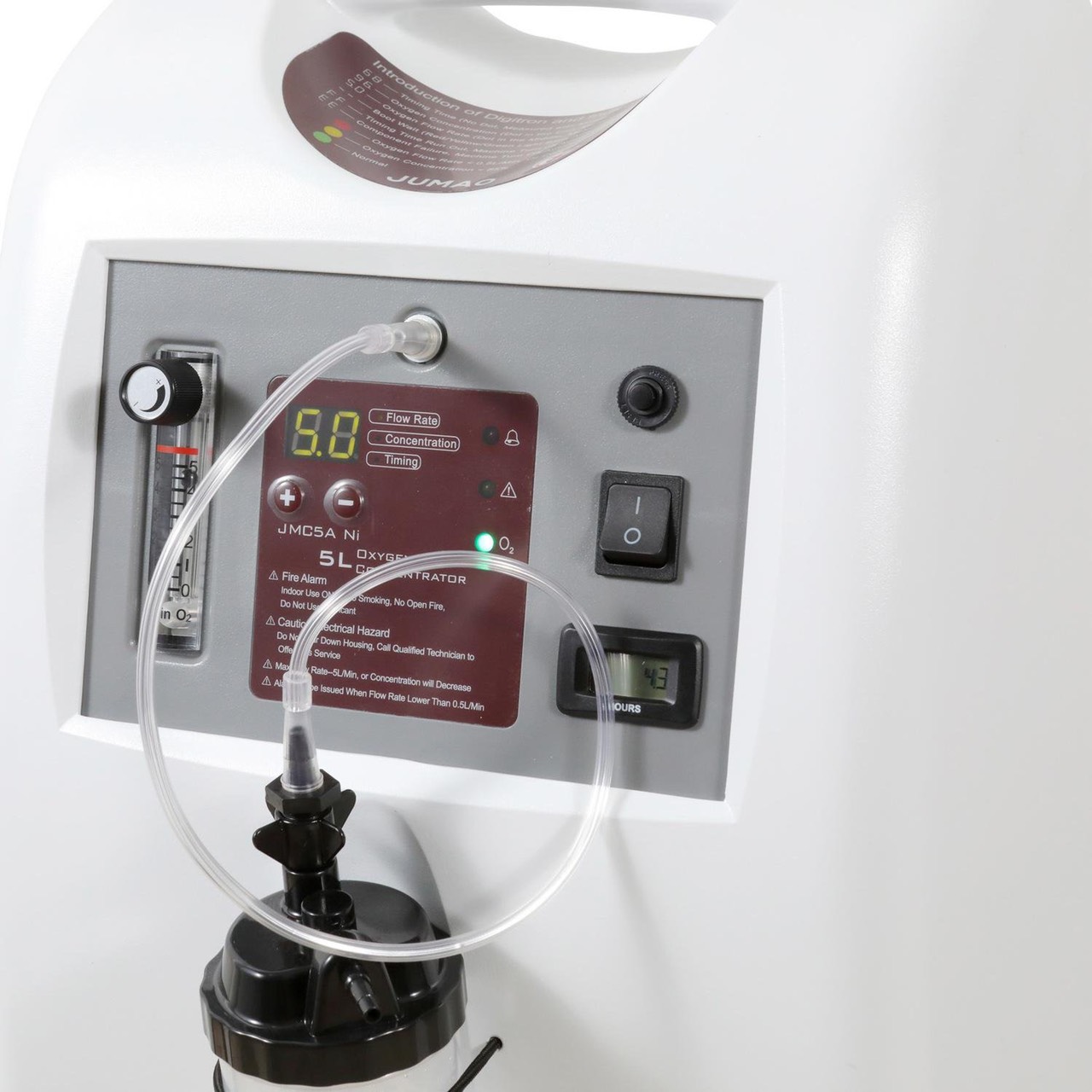

• LED display with color indicators (green, yellow, red)
• Additional features: Timer, real-time oxygen purity display, flow rate & cumulative usage time display
• Compact design with 4 smooth-rolling wheels for easy mobility
• Machine dimensions: 33 × 26 × 54 cm
• Packaging dimensions: 42 × 35 × 65 cm

INCLUDED ACCESSORIES

• Humidifier bottle
• Nasal cannula (oxygen glasses tubing)
• Oxygen mask
• Dust filter
• Complete nebulizer kit (nebulizer cup & tubing)

INSTRUCTIONS FOR USE

Step 1 – Setup

1. Clean the humidifier bottle with clean water.
2. Fill the humidifier bottle with distilled or clean water up to the marked level (do not exceed 1/3 full).

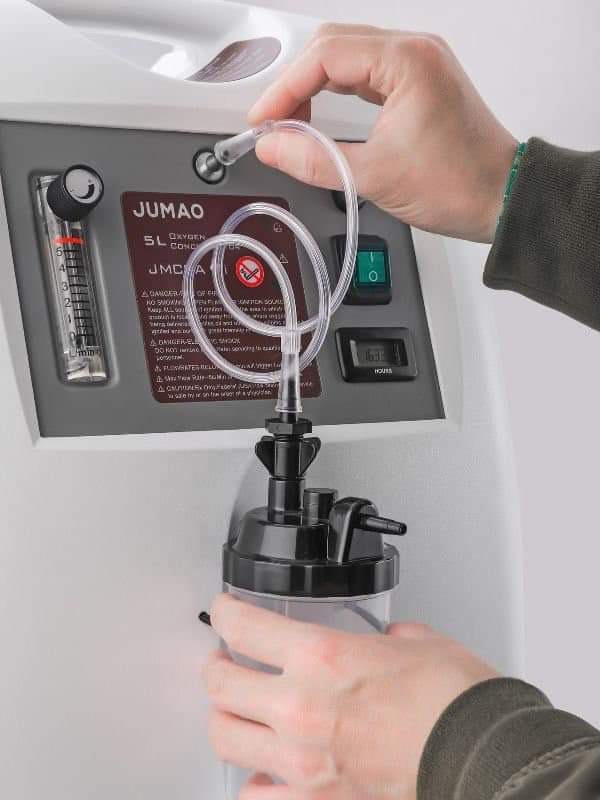

3. Connect one end of the tubing to the oxygen outlet on the machine and the other end to the humidifier bottle.
4. Connect the opposite end of the humidifier bottle to the nasal cannula or mask.
5. Attach the cannula/mask to the patient.

Step 2 – Operation

1. Plug in the power cord and turn on the power switch.
2. Allow the machine approximately 3 minutes to reach optimal oxygen concentration.
3. Adjust the flow rate (L/min) as prescribed by the physician.

Step 3 – After Use

1. Turn off the power switch and unplug the machine.
2. Clean and thoroughly dry the humidifier bottle, tubing, cannula/mask.
3. Store all accessories in a clean, dry, well-ventilated place.

JUMAO JMC5A – Reliable 5L medical oxygen concentrator with FDA 510(k) certification, ideal for home and clinical use.
